Innovative Architect Designed Pool House

29°
Constant temperature
55%
Average humidity
23%
Reduction in running cost

Overview

Poised at the top of a wind-swept hill, it was essential that this residential pool environment was energy efficient and maximised the stunning views of the Malvern hills.
The client gave architect, Klas Hyllén, an open brief allowing a large degree of creative freedom, with the resulting wellness retreat situated apart from the main living spaces.

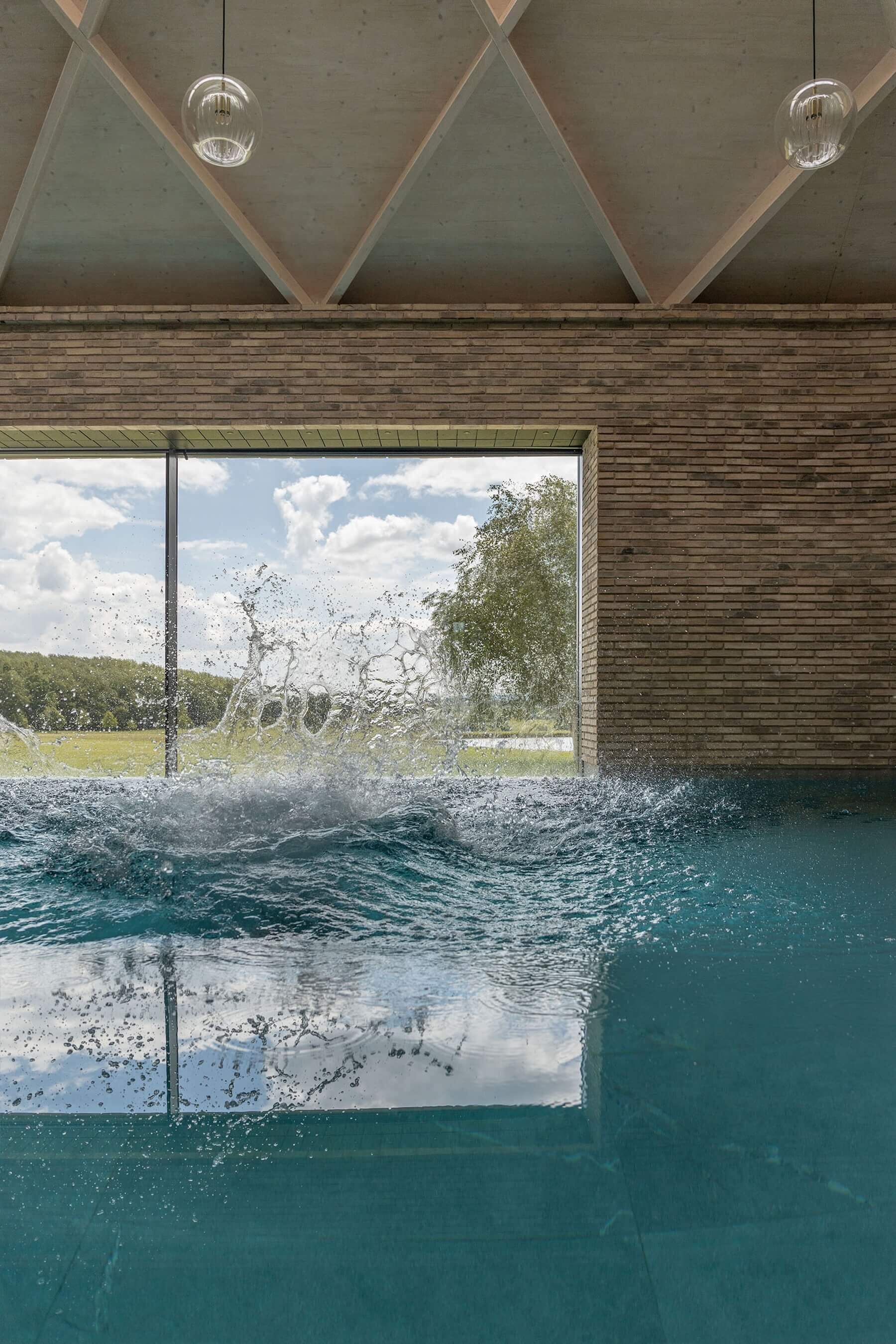

Credit Hide Films for Klas Hyllén Architecture _Splash

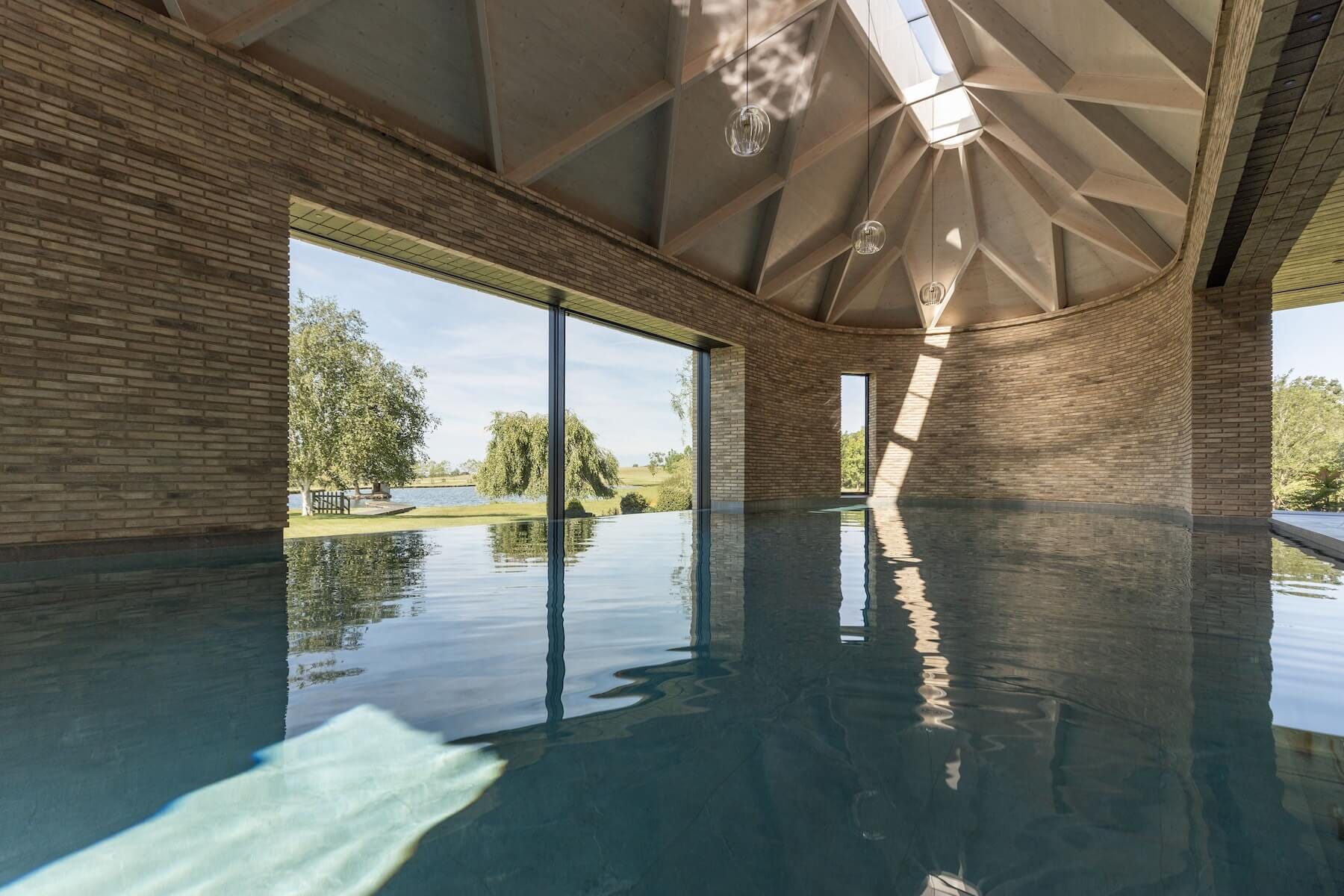

Credit Hide Films for Klas Hyllén Architecture_HERO 2

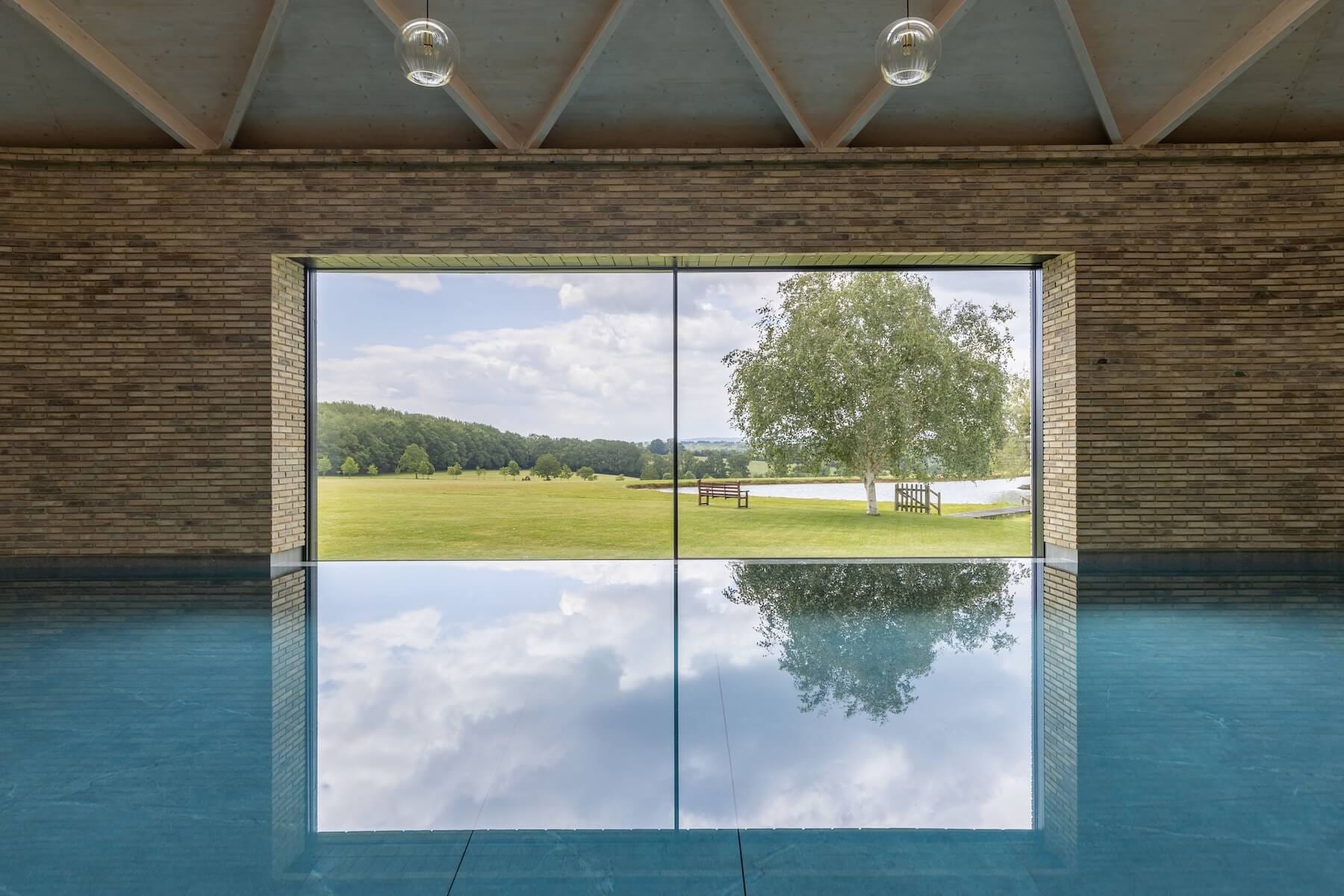

Credit Hide Films for Klas Hyllén Architecture_Int 2

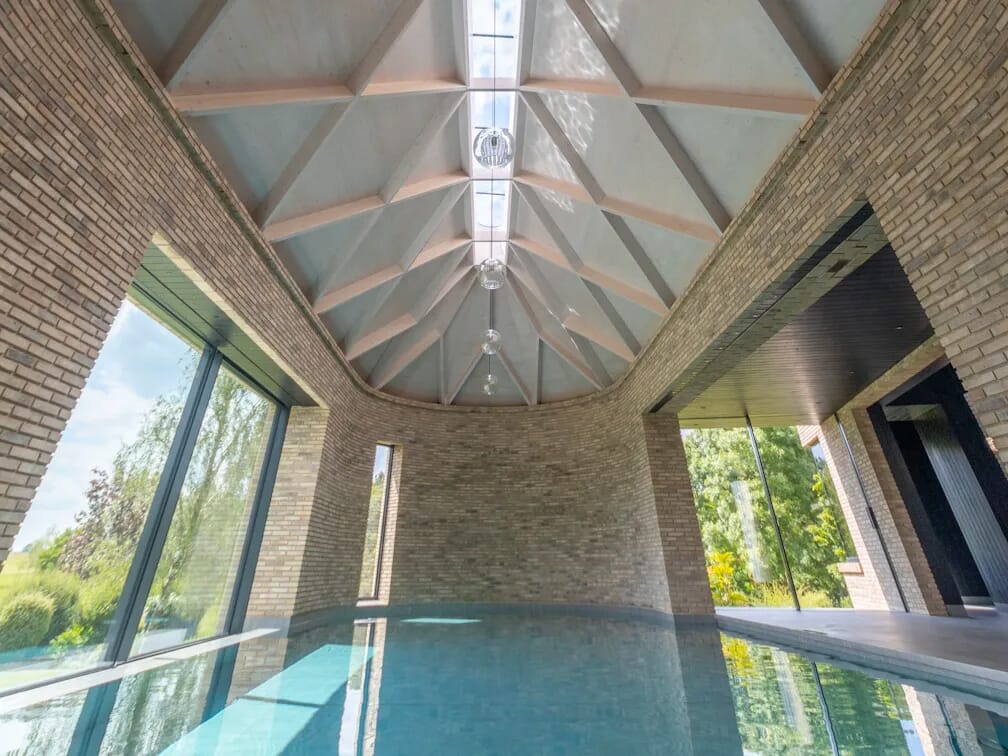

Dummy image1

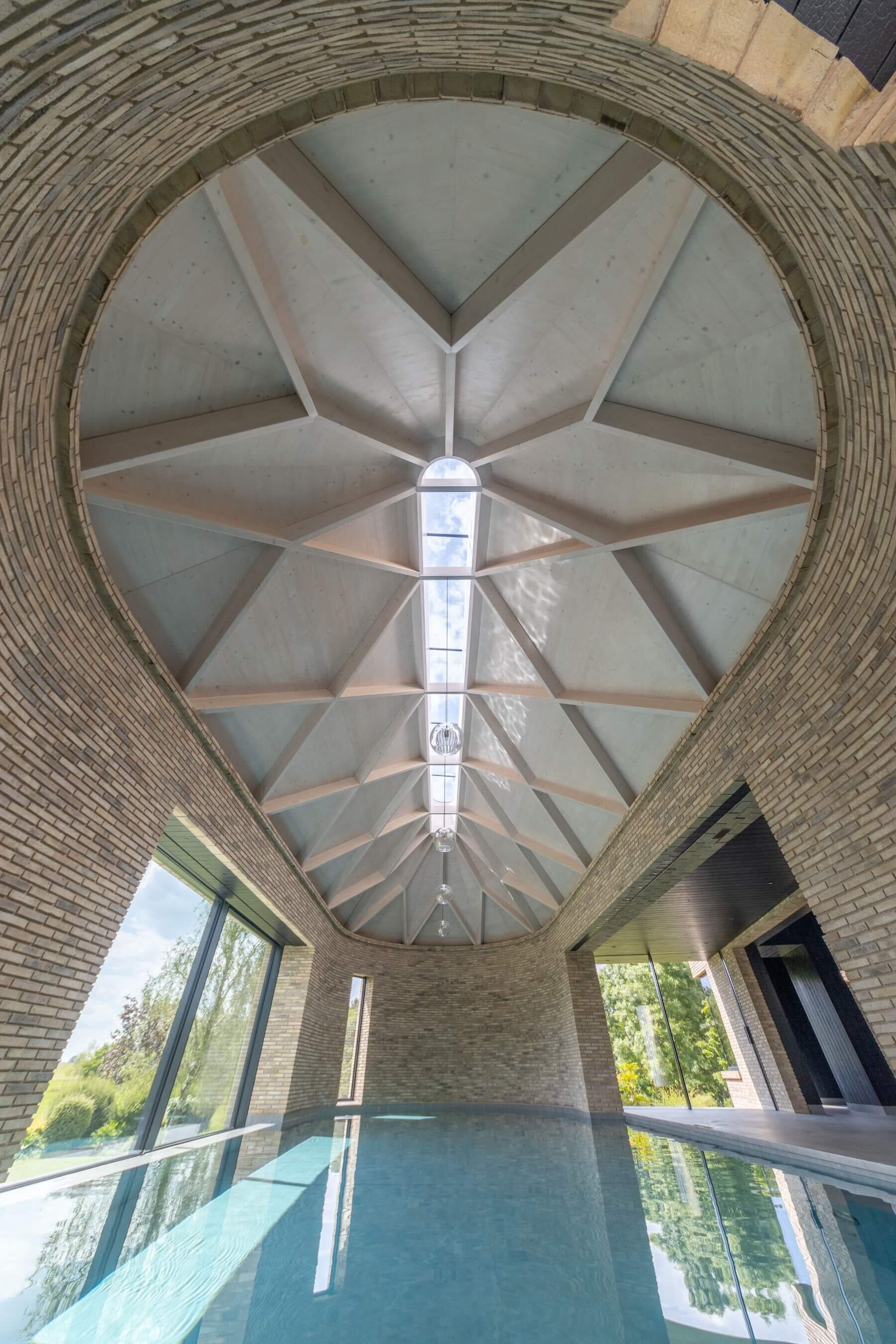

Credit Hide Films for Klas Hyllén Architecture_Int 3

Requirement

Klas Hyllén is passionate about energy conservation, which made Recotherm’s AHU a perfect fit…

“A pool is inherently energy hungry, but we have ensured it uses as little energy as possible by avoiding heat losses. Recotherm’s AHU provides heat recovery so that all heat is recycled whilst ensuring sufficient ventilation.”

Challenges

Unusually, all pool services needed to be integrated into the pool structure itself in order to achieve the architect’s vision and fulfil the client’s brief.

This meant there was no service void around the perimeter, with the water extending to the edges of the building. As such, the large ducts required for air handling needed to be integrated into the structural walls.

Solution

Recotherm worked in close collaboration
with a structural engineer and used the RHS (rectangular hollow section) steel ring beam for a dual purpose; holding up the timber diagrid roof and functioning as the primary
air supply duct to the pool.

This vital role in providing unrivalled attention to detail, from initial discussions to quoting, commissioning and installation of the Aeris 100 energy saving AHU was why Recotherm were chosen for this prestigious project.

Conclusion

This innovative pool hall design has created a large pool area with stunning views and incredible natural light effects.

The client was delighted with the levels of service as well as the end result:

“The air handling unit is the beating heart of this environment, ensuring a constant temperature at about 29 degrees and humidity at about 55%.”
Klas Hyllen
“A pool is inherently energy hungry, but we have ensured it uses as little energy as possible by avoiding heat losses. Recotherm’s AHU provides heat recovery so that all heat is recycled whilst ensuring sufficient ventilation.”
Klas Hyllen
