The Artis is a completely bespoke fresh air swimming pool dehumidification system that is designed for large swimming pool halls such as hotels, spas, leisure centres and schools.

The innovative energy-efficient technology guarantees a more comfortable pool hall environment at a greatly reduced cost.

  • Suitable for large swimming pool halls
  • Fresh air intake for a more pleasant environment
  • No refrigerants
  • High quality filters to remove particulates
  • Can be installed inside or outside
  • Flat packing options for easy access
  • Scented air injection fragrancing options
  • Remote sensing maintenance option
  • Designed and manufactured in the UK

Artis in Pictures

Intelligent Engineering

Recotherm’s innovative approach has revolutionised indoor swimming pool dehumidification. Using controlled fresh air and smart technology to maintain optimal humidity levels in pool halls helps to reduce running costs and results in a fresh environment for users.

Advanced Fan Technology

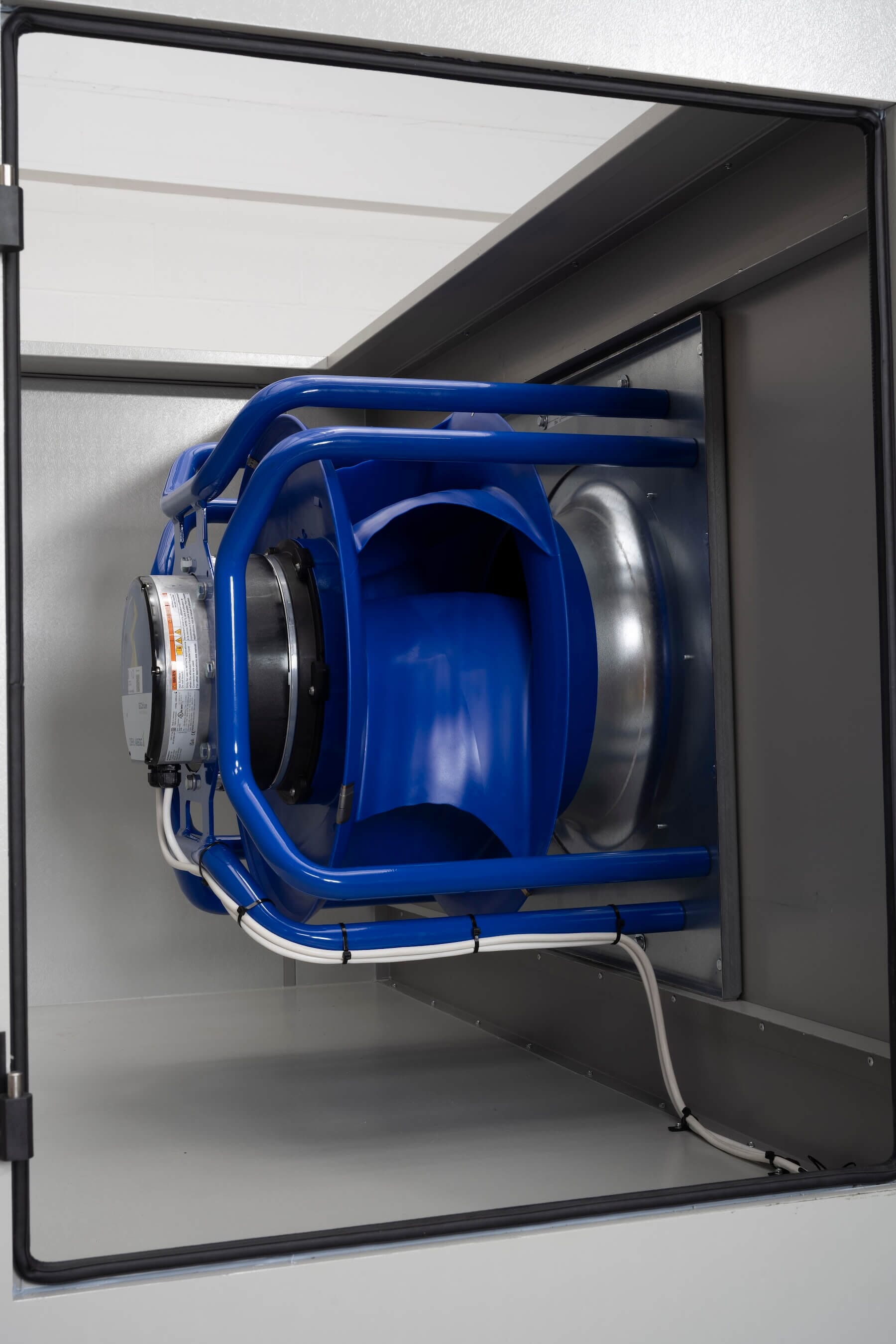

The Artis range features variable-speed ZA bluefin fans that adapt precisely to the speed required, achieving up to 300% greater efficiency than standard fans.

Unmatched Energy Savings

Artis ventilation systems deliver exceptional efficiency, resulting in significant energy savings. Removing a kilogram of moisture with a Recotherm controlled fresh air unit costs just 25% of a typical refrigerant-based dehumidifier system.

Custom Programming

Our engineers can create bespoke programming solutions for individual units to accommodate features such as pool covers and varying usage such as term times etc.

Bespoke Design for Specific Projects

We can design and deliver bespoke AHU systems to meet unique site requirements, such as bi-flo capability with lower temperatures for spectator areas, on-site build options for restricted plant rooms and the replacement of existing AHUs with minimal disruption.


Reduce Energy Usage with Automated Management Systems

Recotherm units intelligently respond to environmental changes within the ventilation system.

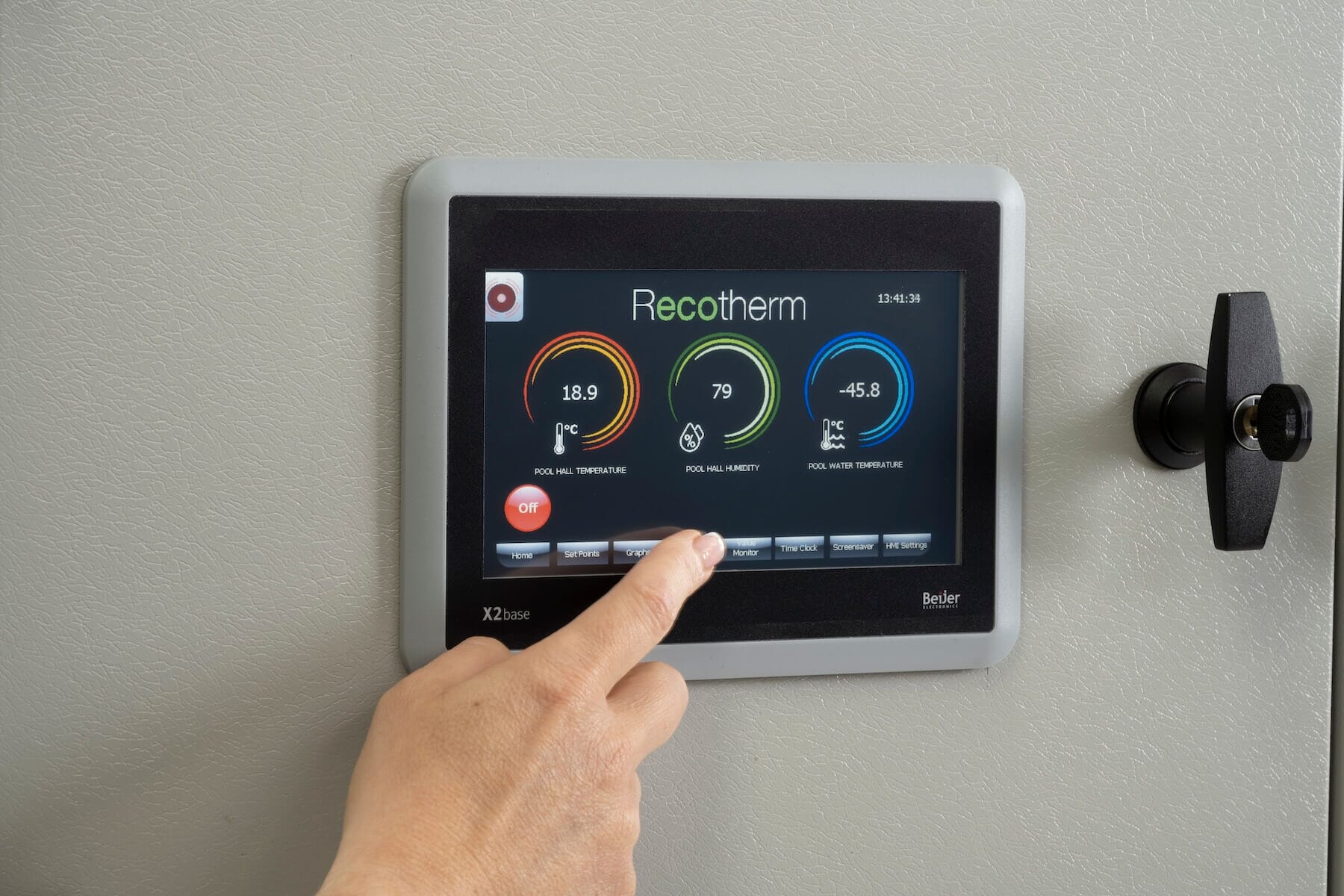

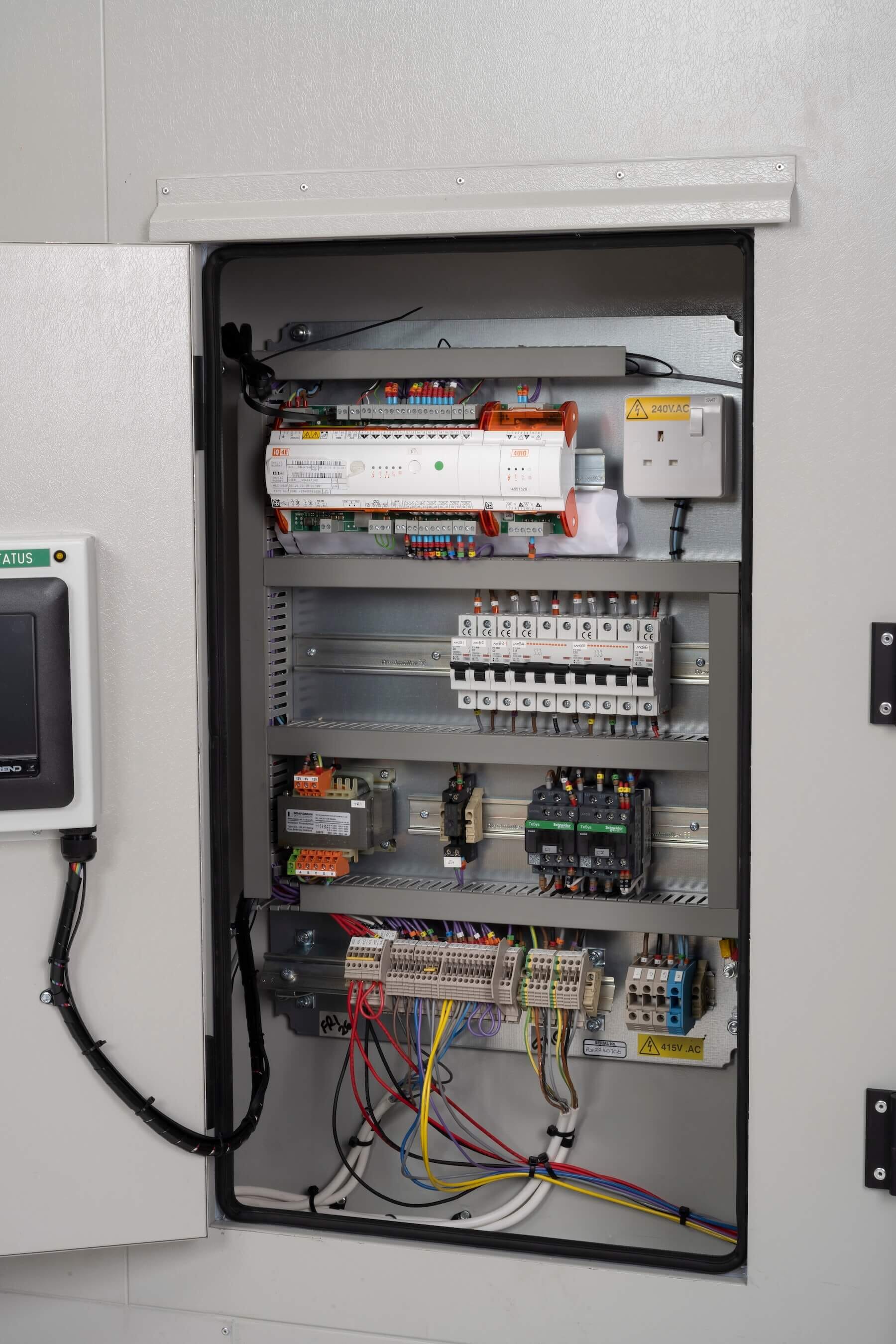

All units are equipped with a Building Energy Management Systems (BEMS) microprocessor which sends signals to the working parts.

All BEMS strategies are written in-house which allows us to tailor each system to a client’s requirements and pool usage. This means we can ensure that the swimming pool air handling unit is always operating at maximum efficiency, which helps to minimise energy consumption. We can also adapt the BEMS strategy over the lifespan of the unit to account for any changes in pool usage.

The Recotherm Difference

Breathe the Difference

Artis uses fresh air flow to control humidity, creating a cleaner, fresher environment and significantly reducing chemical odours.

  • Warm, humid air is drawn from the pool hall and fresh air is supplied using ZA bluefin backward-curve centrifugal fans for enhanced efficiency.
  • A passive heat exchanger (recuperator) captures heat from the return air and transfers it to incoming fresh air, raising its temperature while reducing energy consumption.
  • Fresh air is taken from outside and the exhaust of humid air is regulated to create a cleaner, fresher, more comfortable pool environment.
  • Humidity levels are managed using fresh air, which eliminates the need for energy-intensive processes.
  • Fully modulating heating valves, fans and dampers adjust dynamically to use only the energy required, maintaining consistent optimum pool hall conditions.

A Highly Engineered Superior System

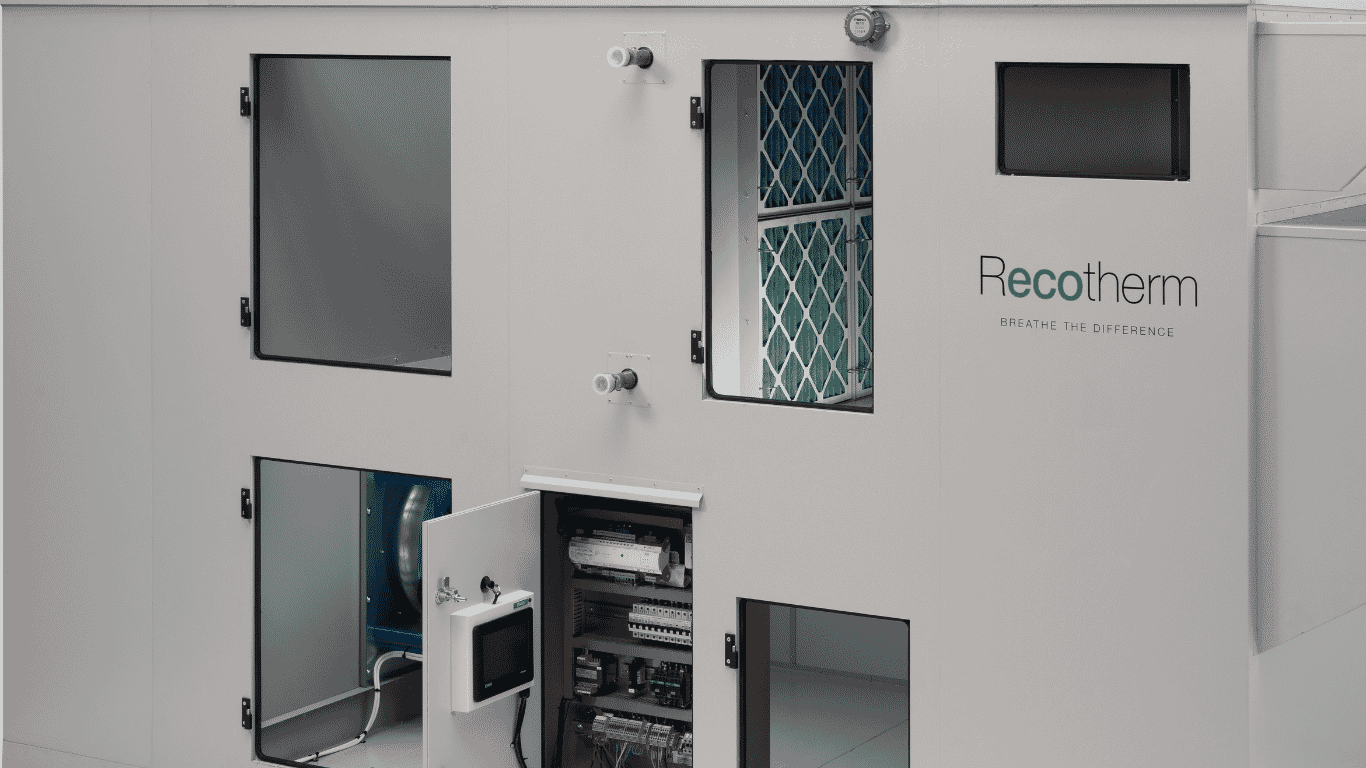

Artis units are constructed to maintain optimal performance at all times. The double-skinned, insulated casework panels help to prevent heat loss in cold plant rooms and heat soak in warm environments.

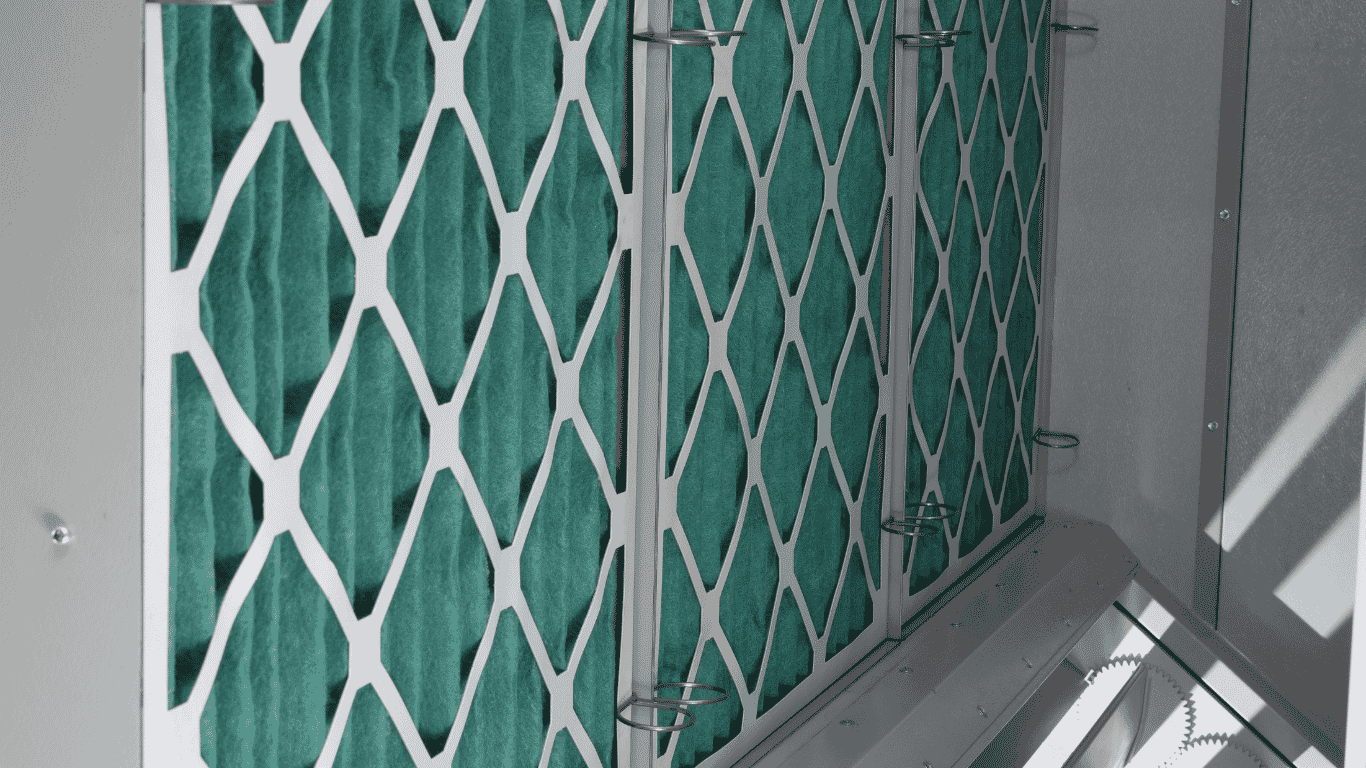

High-grade ISO-Class 65% Grade Filtration filters are supplied as standard and are designed to be easily replaced for trouble-free maintenance (higher grade filters are available if required). Recotherm units are engineered for longevity, with a lifespan of 30 years+ and fully recyclable parts. See our sustainability page for more details.

Artis in Action

Credit-Hide-Films-for-Klas-Hyllen-Architecture_HERO-2

Innovative Architect Designed Pool House

Recotherm’s AHU is the beating heart of this innovative architect designed pool house

29°
Constant temperature
55%
Average humidity
23%
Reduction in running cost
View Case Study
